ABB SPA-ZC102 INTERFACE MODULE

Category:
ABB SPA-ZC102 INTERFACE MODULE
ABB SPA-ZC102 INTERFACE MODULE - Image 2
ABB SPA-ZC102 INTERFACE MODULE - Image 3
ABB SPA-ZC102 INTERFACE MODULE - Image 4
ABB SPA-ZC102 INTERFACE MODULE - Image 5
ABB SPA-ZC102 INTERFACE MODULE - Image 6
ABB SPA-ZC102 INTERFACE MODULE - Image 7
ABB SPA-ZC102 INTERFACE MODULE - Image 8
Sale!

Original price was: $500.00.Current price is: $425.00.

Availability: In Stock
Already Sold: 0 / 2
ABB SPA-ZC102 interface module, which functions as a gateway between the LON (Local Operating Network) and SPA (Substation Automation) bus systems.

  • Function: It is an interface module for devices with a SPA-bus interface, providing connectivity to a LON network.
  • Communication Interfaces: The module supports multiple communication interfaces, which are selectable via DIP switches, including RS485, RS232, and TTL levels.
Free Delivery Free Delivery Free Delivery Free Delivery
Category:
Brand:ABB

Description

NEW OPEN BOX CONDITION

ABB SPA-ZC102 interface module, which functions as a LON/SPA gateway.

  • Function: The module acts as a gateway, connecting devices that use the ABB SPA-bus interface (such as protection relays and control units) to a LonWorks® (LON) network.
  • Operation: It polls data from the SPA-bus device and spontaneously sends updated information (measurements, indications, events) to the LON bus if changes occur.
  • Connectivity:

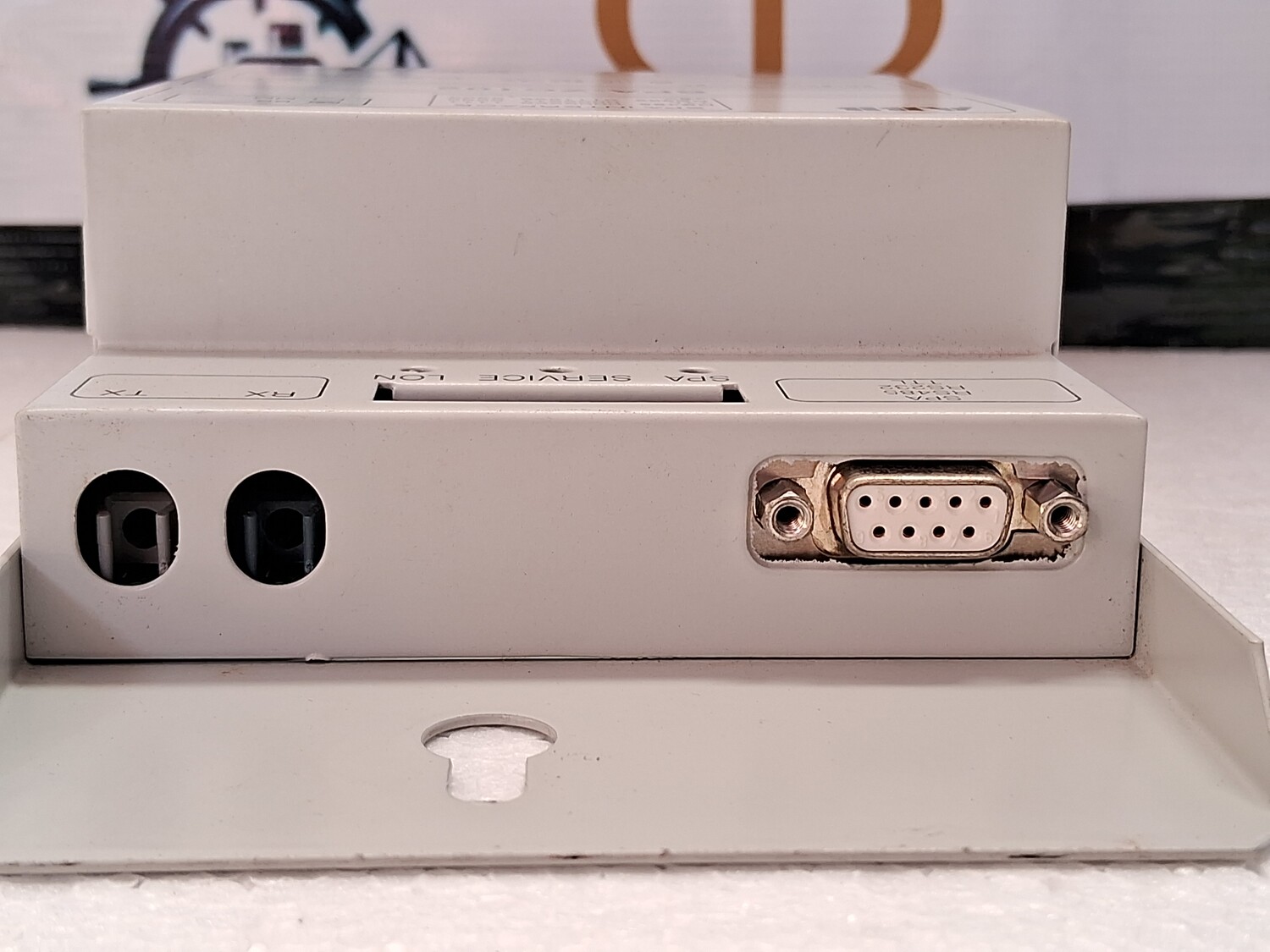

    • SPA-bus side: Connects via a 9-pin D-connector using RS-485, RS-232, or TTL-level signaling.
    • LON side: Connects using glass or plastic fiber-optic cables.

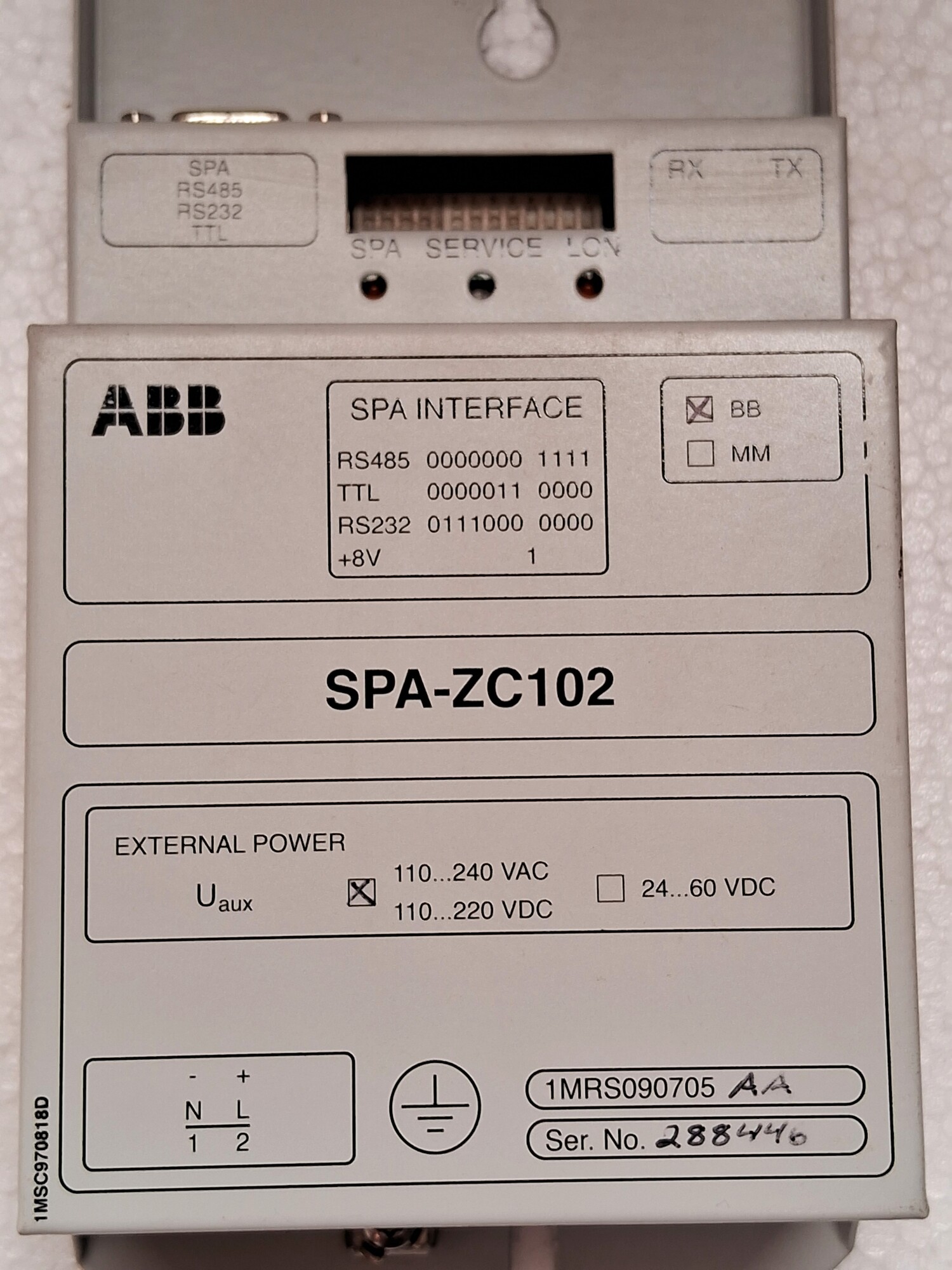

  • Power Supply: Unlike the similar SPA-ZC100, the SPA-ZC102 is powered from an external auxiliary power supply (Uaux), with options for 110-240 VAC, 110-220 VDC, or 24-60 VDC as indicated on the label.
